2010 Mercedes-Benz GLK350 No Start – Steering Lock (ELV) Failure Fixed Without Spending $2,500 at the Dealer

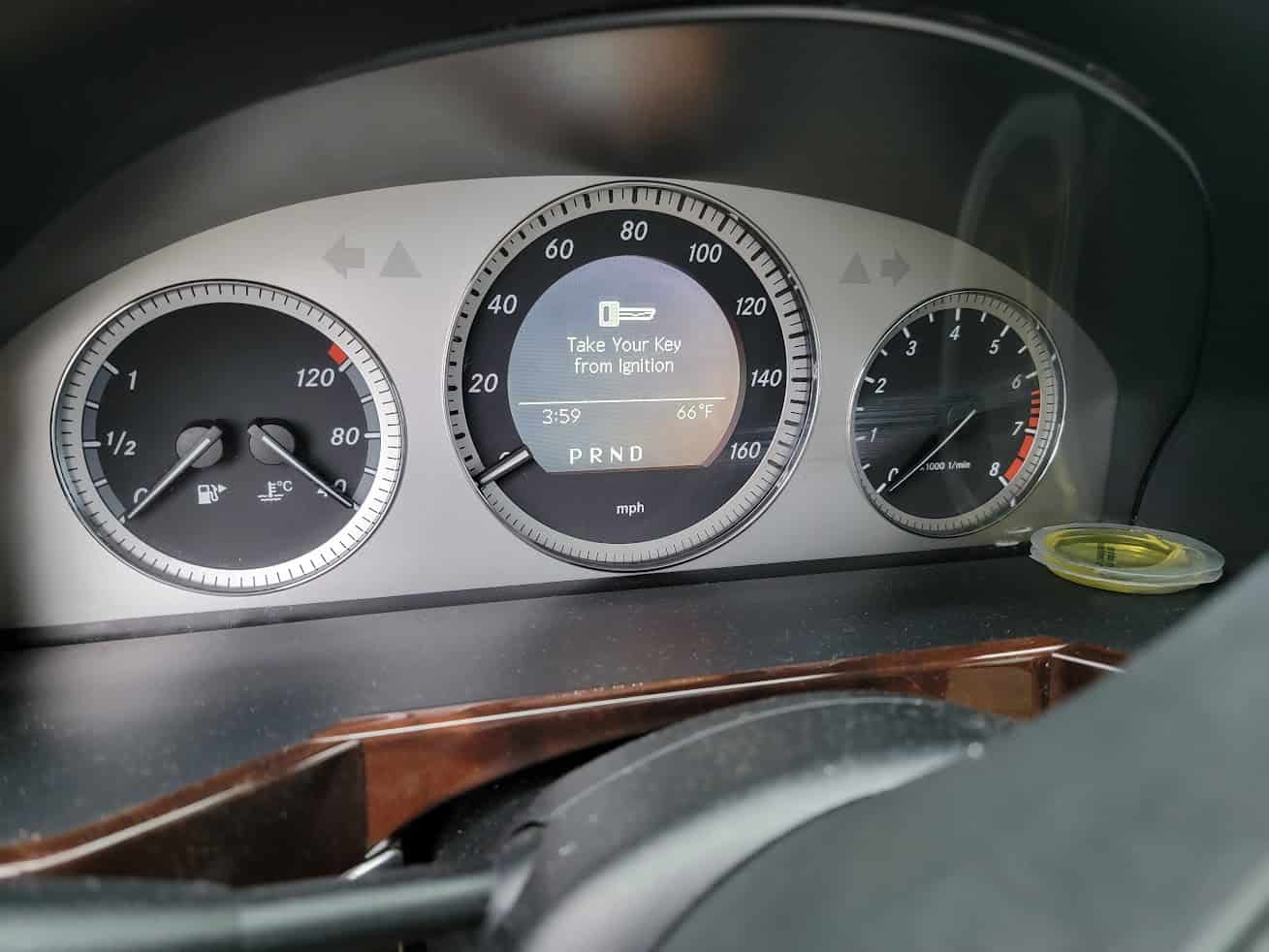

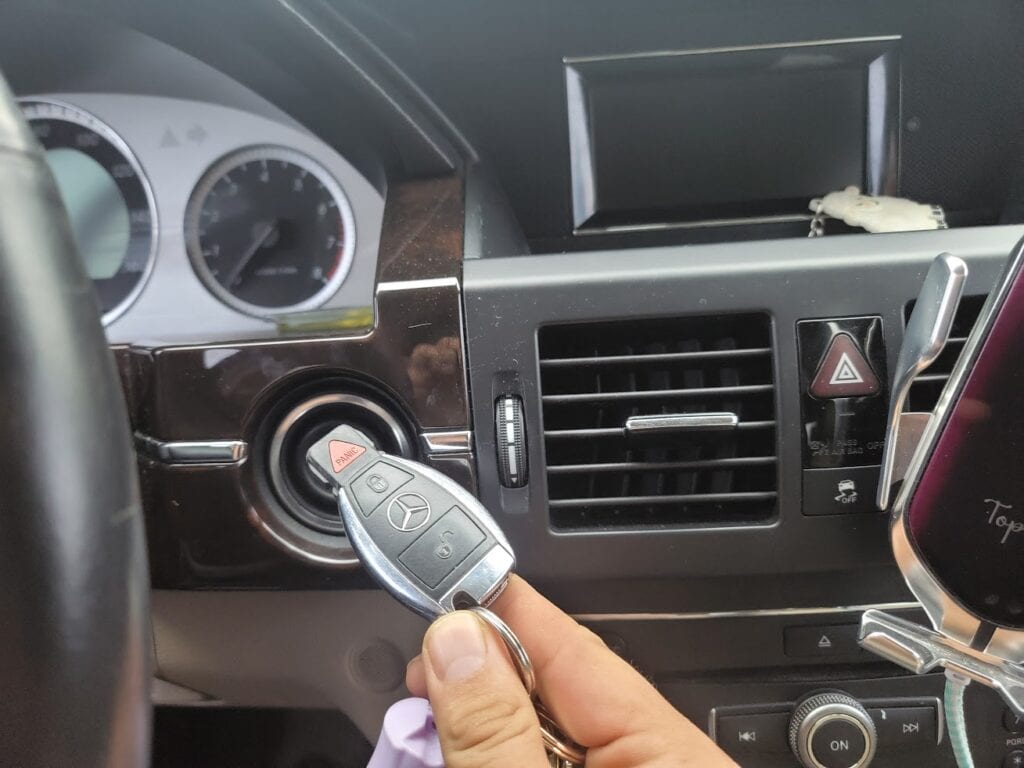

A few weeks ago, my 2010 Mercedes-Benz GLK350 left me stranded in the driveway. I inserted the key into the ignition, but all I got was a message on the dash: “Take Key Out”.
The key would turn, but the instrument cluster remained completely dark. No ignition lights, no sounds—nothing. The steering wheel was also locked solid and wouldn’t budge. I knew I had a serious issue on my hands.
Dealer Quote: $300 Diagnosis + $2,000+ Repair
I called the Mercedes-Benz dealership, and they immediately suggested it was likely a failed electronic steering lock (ELV). They wanted $300 just to diagnose the issue, and quoted $1,800 to $2,500 to replace the steering lock module. Ouch.
🔧 Stop paying the dealer for every warning light
Get dealer level diagnostics at home with the YOUCANIC Full System Scanner.
- ✔ Works with all makes and models, including most luxury brands
- ✔ Topology map view shows all vehicle modules on one screen for faster diagnostics
- ✔ Bi directional controls to test fans, pumps, actuators and more so you do not have to guess
- ✔ Special resets and calibrations such as ABS bleed, EPB service, battery registration and more
- ✔ Free lifetime updates with no recurring fees
Doing My Own Research: ELV Failure is Common
After digging deep into forums, YouTube, and technical documents, I discovered that ELV failure is very common in Mercedes GLK-Class, C-Class (W204), and early E-Class (W212) models around 2010. The ELV (Electronic Steering Lock) is part of the vehicle’s theft prevention system. When it fails, the ignition won’t power up because the system doesn’t detect the column unlocking properly.
This module is designed to lock the steering wheel electronically when the key is removed, and it communicates with the EIS (Electronic Ignition Switch). If there’s no communication between the EIS and ELV, the vehicle will not enter ignition mode.
The DIY Fix: Scanner + Tools = Success
Instead of spending thousands, I decided to invest in a full system diagnostic scanner. I went with the YOUCANIC Full System Scanner because of the:
- Positive reviews from other Mercedes owners
- Bi-directional control & live data features
- No subscription fees and free lifetime updates
- U.S.-based support team
After receiving the scanner, I connected it to the OBD2 port and ran a full system scan. Sure enough, the scanner pulled several fault codes, including one specific to “No communication with steering column module”. That confirmed my suspicion: the ELV was dead.
Step-by-Step: How I Removed the ELV Without Dropping the Steering Column
Most people online said you had to remove the entire steering column, which is a huge job. I found a smarter way:
- Removed the steering wheel – this gave me better access.

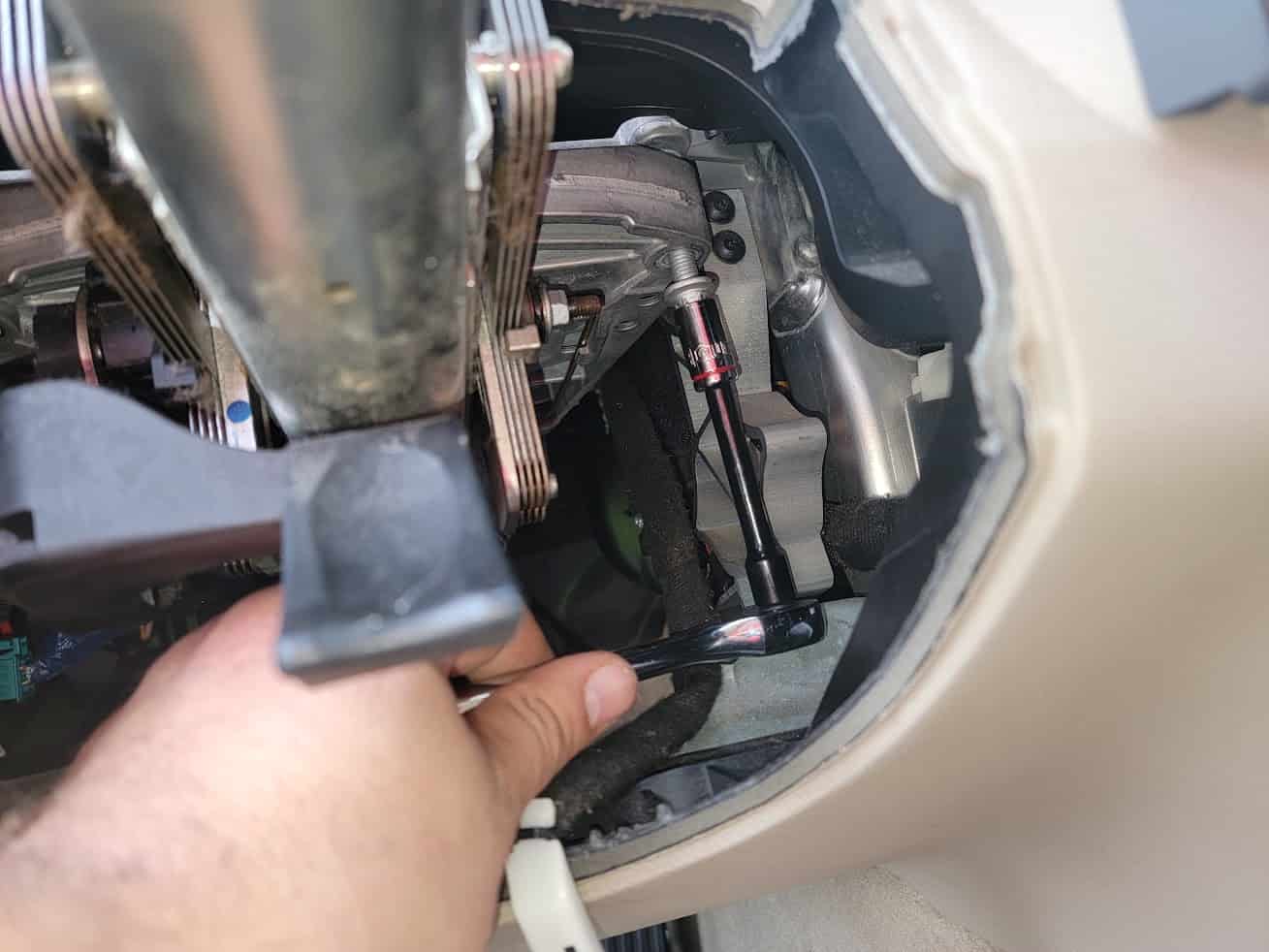

- Removed the four bolts securing the steering column to the dashboard. I did not remove the entire column.

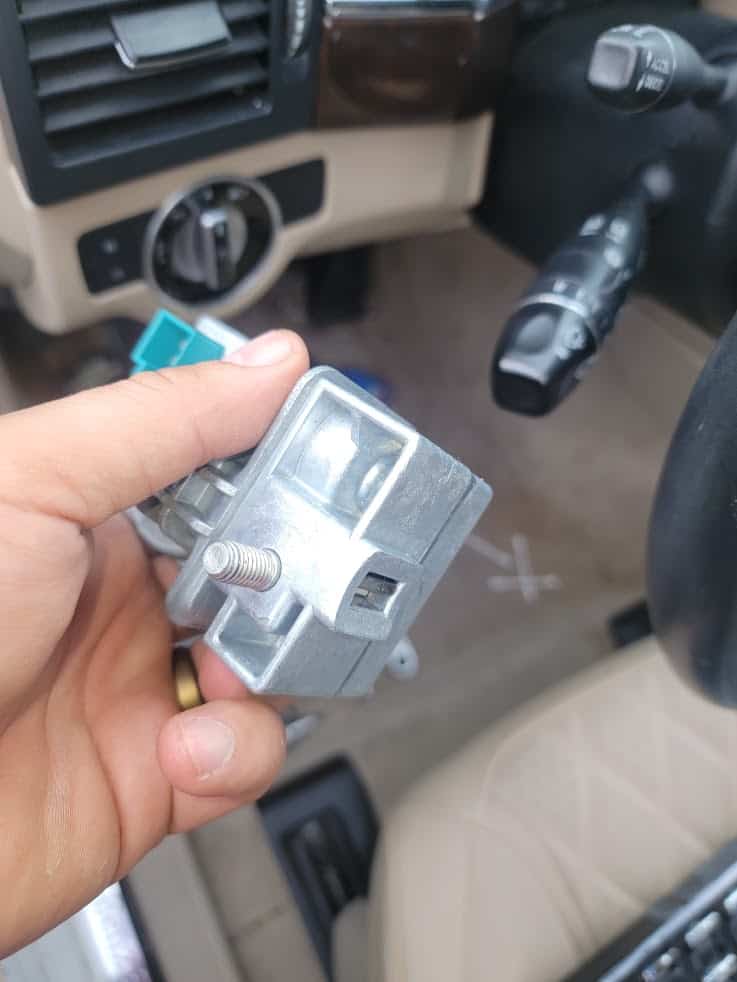

- Located the ELV module, a small box attached to the steering column.

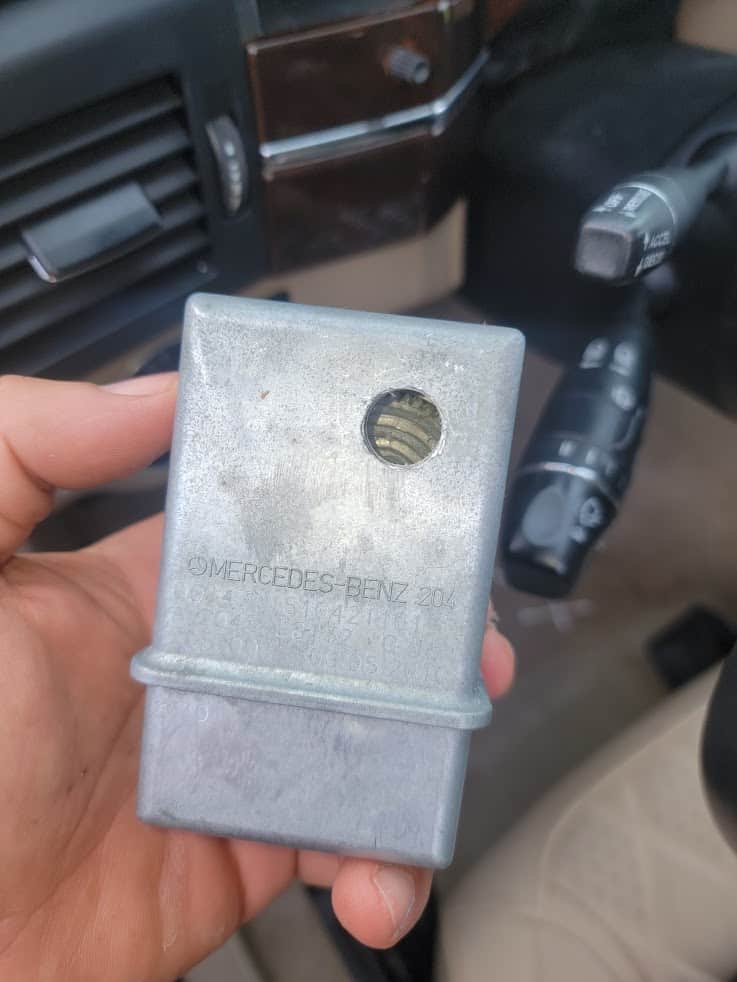

- Using a long drill bit, I drilled a small access hole into the ELV casing (very carefully). Don’t remove the whole steering column from the dash. Once you remove the bolts, simply drop it, and there will be enough room between the dash and the steering column to go ahead and drill a hole, as shown in the next picture.
- Inserted a flathead screwdriver and turned the internal white gear counter-clockwise.
- This released the steering lock and allowed me to remove the 12mm shear bolt holding the ELV module in place.
- Carefully removed the ELV unit from the column.
This approach saved hours of labor and avoided disassembling the lower dash or removing the full column.
Programming a Bypass ELV Module
With the old steering lock out, I shipped my EIS module (ignition switch) to ModuleMedic.com and asked them to:
- Program a steering lock emulator/bypass module to my VIN
- Pair it with the existing ignition system
Once the module came back, I plugged it in, reassembled everything, and turned the key.
Moment of Truth: It Started Instantly
No more “Take Key Out” message. The dash lit up, the steering unlocked, and the engine started right up on the first try. Problem solved for a fraction of the dealer cost.
What I Learned (And What You Should Know)
- Steering Lock (ELV) failure is a common issue on 2008–2011 GLK, C-Class, and early E-Class Mercedes models.
- The car won’t start if the EIS and ELV don’t communicate properly.
- YOUCANIC scanner was crucial for diagnosing the issue without relying on a dealer.
- The DIY fix is absolutely doable with basic tools, patience, and a bit of courage.
- Replacing the ELV with an emulator or bypass unit is a reliable and cost-effective solution.
Final Thoughts
If your Mercedes key turns but the ignition doesn’t turn on—and your steering wheel is locked—you’re likely dealing with an ELV failure. Before spending thousands at the dealership, invest in a professional-grade scanner, confirm the issue, and consider the DIY bypass route. This saved me over $2,000 and gave me a deep understanding of how Mercedes’ anti-theft and ignition systems work.
