2013 Mercedes ML350 | How Replacing One Hose Saved me Thousands!
Contributed by DIY enthusiast Philip Buckowski.

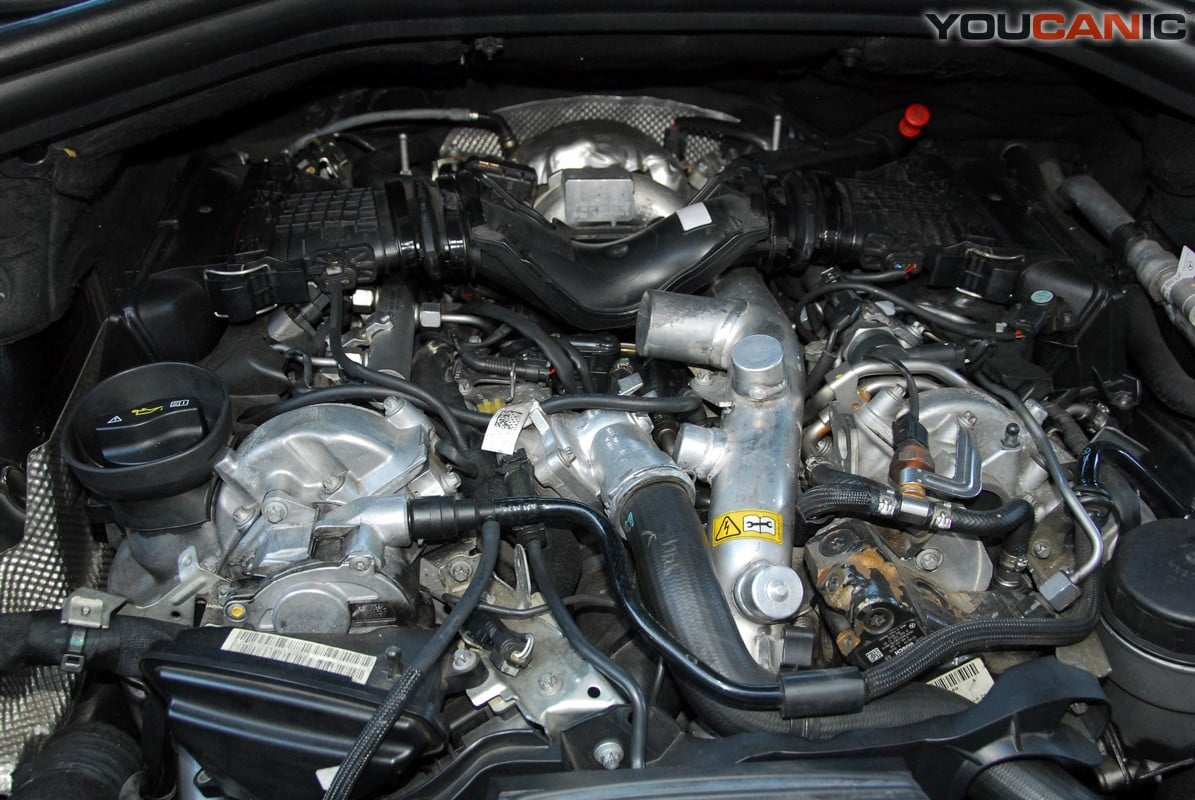

I was driving along one day when I noticed the check engine light (CEL) was on in the dashboard of my 2013 Mercedes ML350. As soon as I got home, I started scanning to determine what exactly was going on under the hood.
For anyone who’s experienced that sinking feeling when a warning light illuminates on your dash, you know the mental checklist that immediately kicks in: Is it serious? Can I still drive? How much is this going to cost me? On a Mercedes-Benz, those questions carry extra weight because dealership labor rates and OEM parts can quickly turn a minor repair into a four-figure bill. That urgency is exactly what pushed me to grab my scanner before even stepping inside.
🔧 Stop paying the dealer for every warning light
Get dealer level diagnostics at home with the YOUCANIC Full System Scanner.
- ✔ Works with all makes and models, including most luxury brands
- ✔ Topology map view shows all vehicle modules on one screen for faster diagnostics
- ✔ Bi directional controls to test fans, pumps, actuators and more so you do not have to guess
- ✔ Special resets and calibrations such as ABS bleed, EPB service, battery registration and more
- ✔ Free lifetime updates with no recurring fees

After running a quick scan, I was met with the DTC (diagnostic trouble code) P245B: Exhaust Gas Recirculation Cooler Bypass Control Circuit performance issue. To repair this issue and resolve the code can be quite costly at a dealership or mechanic, so I decided to try fixing it myself.
For those unfamiliar, the EGR (Exhaust Gas Recirculation) system is designed to reduce nitrogen oxide emissions by recirculating a portion of exhaust gases back into the engine’s intake. The cooler bypass valve controls whether those gases pass through the EGR cooler or bypass it, depending on engine temperature and operating conditions. When the ECU detects that this circuit isn’t performing within expected parameters, it triggers the P245B code. It’s a common issue on the W166 ML-Class and other Mercedes models equipped with the OM642 diesel or M276 gas engine, but that doesn’t make diagnosing it any less frustrating.

After doing more reserach on this DTC, and what I needed to do to clear the code and CEL, I found a couple of suggestions online to fix the issue: Replacing the EGR cooler, Replacing the EGR cooler bypass valve, Replacing the temperature switch, cleaning corrosion from connectors, Repairing or replacing faulty wiring, or cleaning carbon buildup in the EGR valve.
This is the stage where most DIYers either get overwhelmed or start throwing parts at the problem. The internet is full of forum posts with conflicting advice, and without proper diagnostic data, you’re essentially guessing. I’ve seen people spend hundreds of dollars replacing an EGR cooler only to find out the real culprit was a cracked vacuum line worth a few dollars. The key to avoiding that trap is having the right diagnostic tool that can narrow things down before you start unbolting components.

Everything pointed to the EGR valve. I cleaned the EGR valve and checked the wiring and coolant for blockages or leaks, but this did not clear the MIL (malfunction indicator light/CEL). I needed more help.
This is a perfect example of why reading code alone isn’t enough. A basic code reader will tell you what the system is complaining about, but it won’t tell you why. The P245B code pointed me toward the EGR system broadly, but without the ability to monitor live sensor data and actuator tests, I was left making educated guesses. That’s the difference between a code reader and a true diagnostic scanner: one gives you a starting point, the other helps you reach the finish line.

To pinpoint the exact issue I needed to fix, I invested in a YOUCANIC UCAN-II-C scanner, which enabled deeper troubleshooting. While any basic scanner can read codes to tell you what the issue could be, a YOUCANIC scanner goes further, providing not just the DTCs, but possible solutions and live data that will help guide you through every fix.
What really set the UCAN-II-C apart for me was the ability to run live data while testing individual components. Instead of blindly swapping parts, I could monitor sensor readings in real time and compare them against expected values. For a DIYer working without a lift or a shop full of specialty tools, that kind of insight levels the playing field. It turns what could be hours of trial and error into a focused, methodical diagnosis.

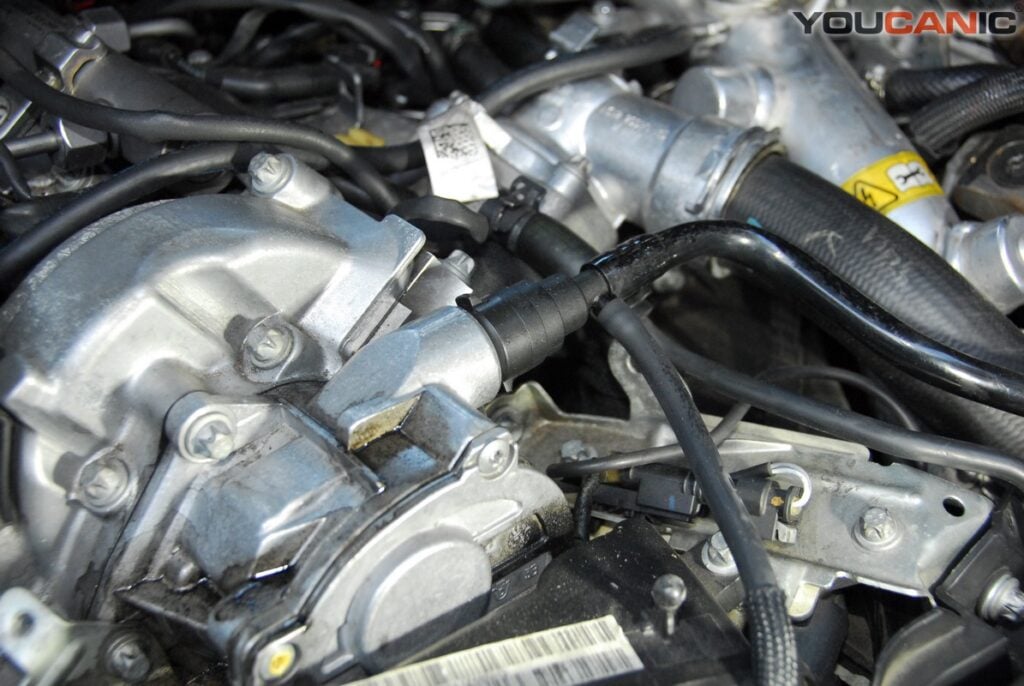

The reader indicated that my Y856, the switchover valve, was the real problem. Located on the front passenger side of the motor, this valve, part number 002-540-70-97, controls the amount of recirculated gas entering the engine intake. This valve is controlled by vacuum from the vacuum pump. The vacuum pump has two connections, one for the brakes and the other for the Y865 valve. I found the vacuum hose was hard and had broken off the valve connection. After replacing the vacuum hose, the code cleared, and the problem was resolved. With the power of my YOUCANIC UCAN-II-C scanner and lots of online forums, I was able to save a ton of money by replacing parts that didn’t need to be replaced.
