Catalytic Converter Glowing Red Hot
Is your car running rough, engine vibrates, shakes, and the catalytic converter is too hot or overheating? Check engine light comes on with a misfire code? In such cases, the car feels like it has lost power, you notice poor fuel economy, poor performance, and poor throttle response. You open the hood and see the Catalytic Converter Glowing Red. In this article, we will discuss the most common reasons why catalytic converter or exhaust manifold overheat or in other words glow red.
If the catalytic converter is glowing red hot, the first thing that most people think is that the catalytic converter is clogged. Don't rush into this conclusion. The first thing you need to do is read this article. We had seen cases when an owner changed the catalytic converter thinking that is was clogged because it glows red. After spending several hundred dollars on a new catalytic converter, you find out that the new catalytic converter is still overheating.
The main reason why a catalytic converter glows red is that raw fuel is getting into the catalytic converter and is burned there. Common cause is a cylinder misfire. Stop driving the car and get it diagnosed ASAP. Otherwise, you risk causing further damage to the engine and the catalytic converter.
Before you decide to change the catalytic converter, perform a couple of tests to determine if the catalytic converter is clogged. One standard test used to determine if the catalytic converter is clogged is to do an exhaust back pressure test. Most muffler shops will do a back pressure test. Some mechanics may even do this test for free. You can also do the test yourself. This test is very easy. Get an Exhaust Back Pressure Tester Gauge from Amazon. Unplug the upstream oxygen sensor and plug the gauge. Start up the car. Withing minutes you will be able to see if there is excessive pressure building up in the catalytic converter. Rev up the engine and hold the RPMS at 2000. In most cases, the pressure should be less than 20 kPa.
Why is my catalytic converter glowing red?
There can be multiple reasons, but the majority of cases fuel that should be ignited inside the combustion chamber is getting burned at the catalytic converter. This happens when the engine has a misfire or is running rich. An engine could run rich due to several reasons that we will discuss here. When unburned fuel is getting burned at the catalytic converter, it will cause the cat to overheat. This can be verified by looking at the catalytic converter at night. You will see a red hot ring on the catalytic converter, but this shouldn't be happening under normal operating conditions.
Catalytic converters are designed to operate at very high temperatures. Standard operating temperature can range between 1000 -1500 degrees F. Catalytic converters can handle minuscule amounts of raw fuel, but not a significant amount of raw fluid that can make it to the cat due to a misfire.
If you are having an engine problem, check engine light is on always inspect if the catalytic converter is glowing red. If it is, stop driving your car right away. You have a problem with fuel not burning, engine running rich, but if you continue to drive this way you will be causing damage to your catalytic converter. The converter is not going to last very long. The honeycomb material inside the catalytic converter will melt, clogging your catalytic converter. If you continue to drive when your cat is glowing red, not only will you have to fix the misfire problem or engine running rich issue but you will also have to replace your catalytic converter which will get damaged very soon.
Common Causes of Catalytic Converter Glowing Red
The main reason why a catalytic converter is a bright red is due to a cylinder misfire. Other possibilities could be engine running rich, or fuel is not being burned completely inside the engine. Here, we will discuss some of the most common reasons why a catalytic converter may be glowing red.

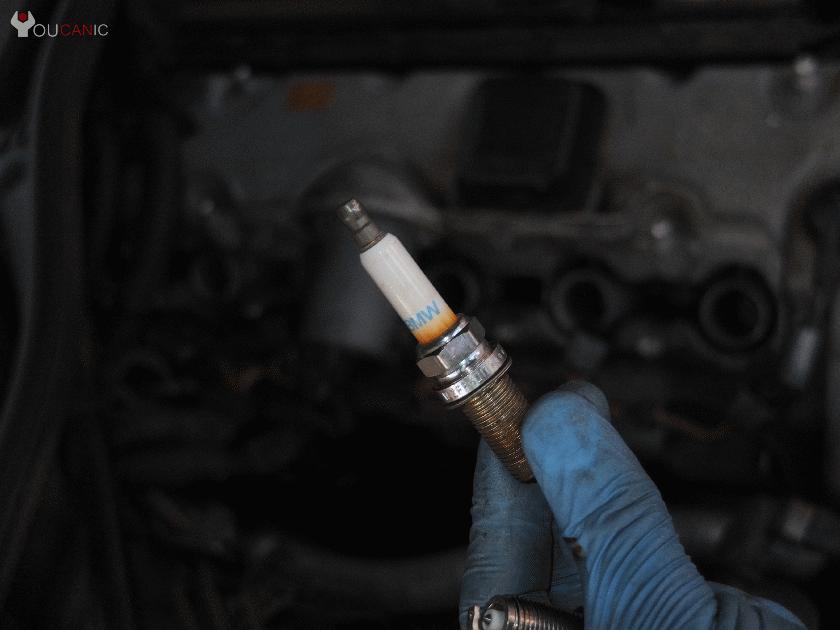

Misfire / Bad Spark Plugs
If the spark plugs are too old, it is possible that they are causing the misfire. The spark plug gap may be too large, or the resistor inside the spark plugs is damaged, and now they no longer ignite or burn the fuel that goes to that cylinder. When this happened, you will get a cylinder misfire code. Your check engine light comes on, and if you scan the OBD-II codes you will find out that you have one or more of the following codes:
- P0300 Random/Multiple Cylinder Misfire Detected
- P0301 Cylinder 1 Misfire Detected
- P0303 Cylinder 3 Misfire Detected
- P0304 Cylinder 3 Misfire Detected
- P0305 Cylinder 3 Misfire Detected
- P0306 Cylinder 3 Misfire Detected
- P0307 Cylinder 3 Misfire Detected
- P0308 Cylinder 3 Misfire Detected
If you are wondering how to diagnose the check engine light, read our article on Check Engine Light Troubleshooting. You will need an OBD-II code reader. If you don't have one, you can buy an OBD-II code reader on sites like Amazon. Check out Amazon's Best Selling OBD-II Code Reader list.

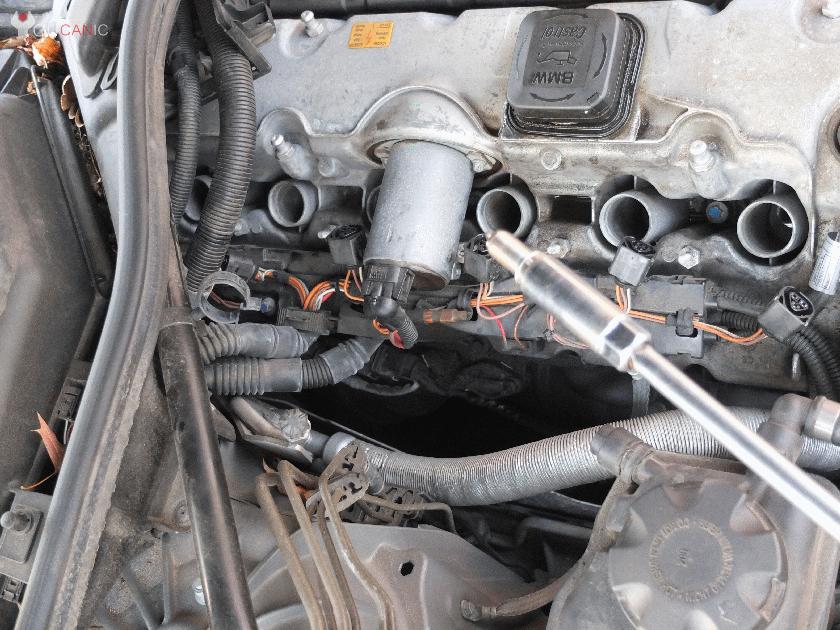

Once you confirm that you have an engine misfire, your first step is to replace the spark plugs especially if they have never been changed.
Bad Ignition Coil
Ignition coils do fail, and on some car models (Audi / VW anyone?) more frequently than they should. The first thing you should do is to swap the ignition coil on the cylinder that is causing the problem with one that is not. So if you are getting a P0302 code, that means Cylinder 2 is misfiring and causing the catalytic converter to overheat. Remove the ignition coil from cylinder 2 and swap it with one that you know is not the problem, let say Cylinder 4. Before you restart the car, clear the codes using an OBD II code reader. Now if you are getting P0304, that means that the problem moved to cylinder 4, so the ignition coil is the problem. If you are still getting P0302 cylinder misfire, that means the problem is not the ignition coil, so we need to continue troubleshooting cylinder two misfires.
If you determine that the issue is a bad ignition coil, replace the coil. You don't need to replace all of the coils. Just replace the defective coil. Replacement ignition coils can be purchased online for any make and model.
Bad ECU Computer
While a rare issue, it is not uncommon for the Engine Control Unit (ECU) to fail, causing overly rich fuel mixture. Don't rush to replace the ECU though. Often the engine wire harness can be the problem. ECU is easy to replace but requires programming by the dealer and ECUs are expensive. The wire harness parts are less expensive, but they need over 10 hours of labor to replace on most cars. While a bad ECU or wiring harness can cause engine misfire which can result in catalytic converter overheating, such issues don't occur very often.
Another possibility is that you are having fuel issues. You may have excessive fuel pressure due to a failed fuel regulator or even a damaged fuel injector. If you suspect that your problem is fuel related, you can perform a fuel pressure test. Look up where the fuel pressure port is located on your vehicle. Plug a fuel pressure gauge and measure the fuel pressure.
Burned or Bent Valves or Worn Rings
This is the worst case scenario and hopefully not your problem. But if you have any burned or bent valves or worn out rings, there will be no compression at that particular cylinder. In return, the fuel/air mixture is not getting burned. The raw unburned fuel goes out the exhaust pipe and is getting burned up at the catalytic converter. This is typically a very expensive repair and you will most likely need the help of a mechanic to fix such issues.
The list of problems that can cause your engine to run rich can go on and on. Other problems could be, MAF sensor problem, oxygen sensor problem, spark plug wire short. If you have an older car, the distributor and spark plug wires could be the problem.
The ignition coil electrical socket can also get loose or even get unplugged from the ignition coil or pack. On some cars, oil could between the ignition coil and spark plug due to a valve gasket oil leak. This can cause a short and therefore an engine misfire. When this happens the engine may be shaking excessively, and raw unburned fuel is reaching the catalytic converter and is getting burned there.
This article is for car owner's who are experiencing the following problems:
- Catalytic converter glowing orange
- overheated catalytic converter symptoms
- what would cause my catalytic converters to glow
- catalytic converter gets cherry red
- exhaust pipe glowing red hot
- what causes exhaust manifold to glow red
- brand new catalytic converter glowing red
- power loss and red hot catalytic converter
